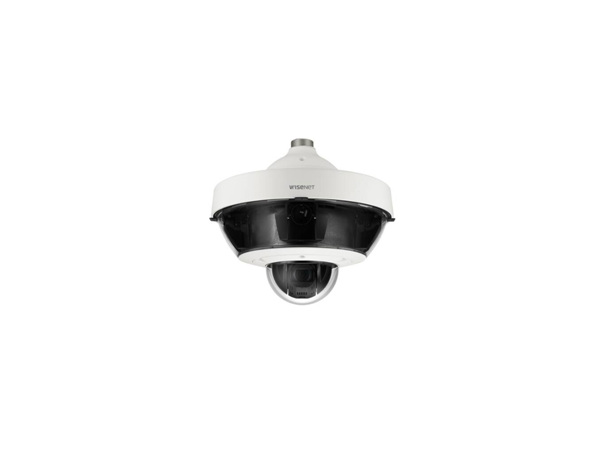

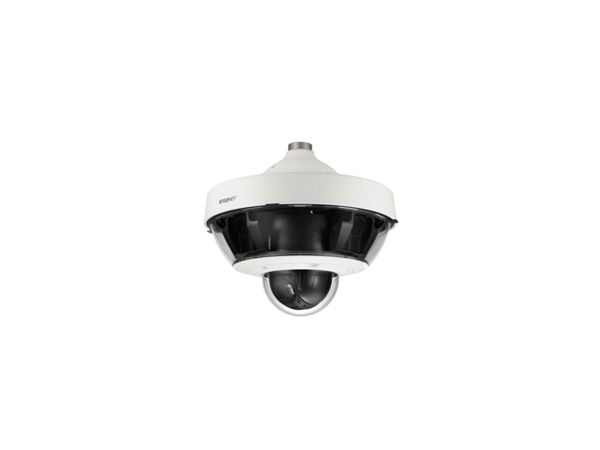

Hanwha PNM-9322VQP
10MP to 22MP Multi-directional PTZ Camera, 32x Optical Zoom, Day / Night, Extreme WDR, IK10 Vandal Resistant

Request a quote

You will receive an offer for the following products
Hanwha PNM-9322VQP
10MP to 22MP Multi-directional PTZ Camera, 32x Optical Zoom, Day / Night, Extreme WDR, IK10 Vandal Resistant
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details

Description Hanwha PNM-9322VQP

Network vandal outdoor Multi-sensor Multi-Directional camera, (2MP/5MP X 4 sensors sold separately) 8MP ~ 20MP (2MP @ 60fps or 5MP @30fps) fixed focal lens modules + 2MP 32x optical zoom PTZ, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR @ 2MP or 120dB @ 5MP, defocus detection, built in analytics, 4x SD card, hallway view, HLC, fog detection, DIS(Gyro Sensor), Audio I/O (PTZ ch only), HPoE (injector included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F). White camera body. New easy installation cap. SFP port in injector.

Key Features:

  • Exchangeable 4ea x 2M / 5M lens modules

  • 8M to 20M resolution (depend on the combination of lens modules)

  • Max. 60fps@2M, Max. 30fps@5M (H.265 / H.264)

  • WDR 150dB with 2M, 120dB with 5M lens module

  • 2.4mm, 2.8mm, 3.6mm, 6mm, 12mm fixed lens (2M module)

  • 3.7mm, 4.6mm, 7mm fixed lens (5M module)

  • H.265, H.264, MJPEG codec,WiseStreamⅡ

  • IP66, IK10, SD / SDHC / SDXC memory 5 slots

  • 4.44~142.6mm(Optical 32x) lens, Day & Night (ICR)

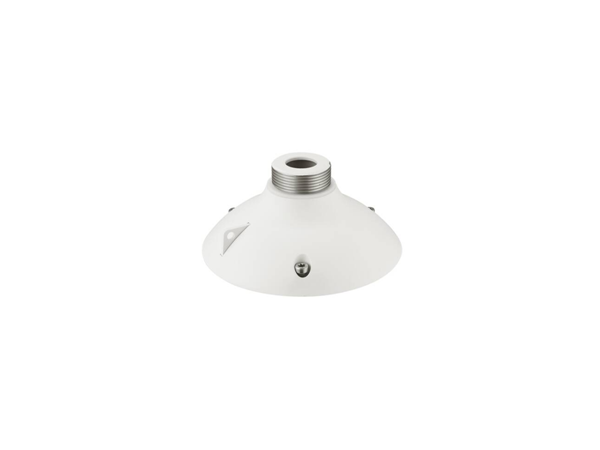

  • New install base design


Specifications

Product

Model numberPNM-9322VQP
GTIN code8801089176615
BrandHanwha
Category

IP Cameras

PTZ

Camera Properties

Outdoor

Vandal resistant

Basic Functionality

Day and night

Local Storage

Resolution

4K (8.3MP) or higher

Software

Analytics

Hanwha Series

Wisenet P

Angle of View

180° - 360°

Optical zoom

28+

Encoding

H264

H265

MJPEG



Download
File name Filesize Filename extension Update date Download
Datasheet 1.62 MB pdf
User manual 5.16 MB pdf
Installation manual 4.27 MB pdf
