THEIA ML610M
Theia Technologies ML610M C接口 6-10mm变焦镜头

寻求报价

您将收到以下产品的合适报价
THEIA ML610M
Theia Technologies ML610M C接口 6-10mm变焦镜头
姓名:*
公司名称:*
电话:邮箱:*
您的留言:*
验证码:
产品详情

Theia Technologies ML610M 概述

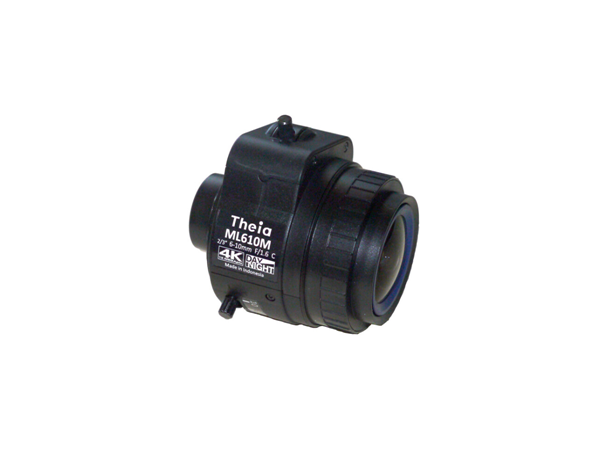

The Theia Technologies ML610M is a varifocal lens with a 6-10mm focal range that provides an 87-51° horizontal field of view on 2/3" sensors of cameras with a resolution up to 12MP. The 6-10mm varifocal lens covers focal lengths of three prime lenses; 6, 8, and 10mm. This provides the flexibility to dial in the focal length and field of view as needed for the specific application, making a modular multiproduct inspection line possible.


主要特点

  • Compatible with 12MP Cameras

  • Designed for 2/3" Sensors

  • C Mount

  • 6-10mm Varifocal Lens

  • IR Corrected

  • Manual Iris

  • Vibration Resistance

  • Theia Technologies ML610M 规格

  • Lens Mount

    C

    Sensor Compatibility

    2/3", 1/1.7", 1/2.5" (12.4 MP)

    Focal Length

    6 to 10mm

    Maximum Aperture

    f/1.6 to 2.4

    Angle of View

    2/3"-Type Sensor
    Horizontal: 87 to 51°
    Vertical: 64 to 38°
    Diagonal: 111 to 64°
    1/1.7"-Type Sensor
    Horizontal: 74 to 44°
    Vertical: 55 to 33°
    Diagonal: 93 to 55°
    1/2.5"-Type Sensor
    Horizontal: 55 to 33°
    Vertical: 41 to 25°
    Diagonal: 70 to 42°

    Iris Type

    Manual

    IR Corrected

    Yes
