Hanwha PNM-9084QZ1 描述：

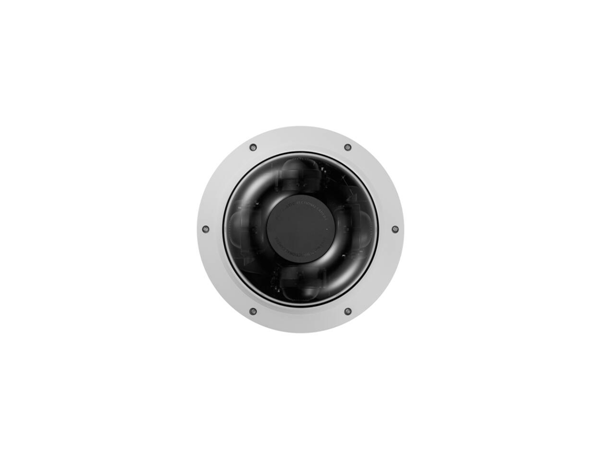

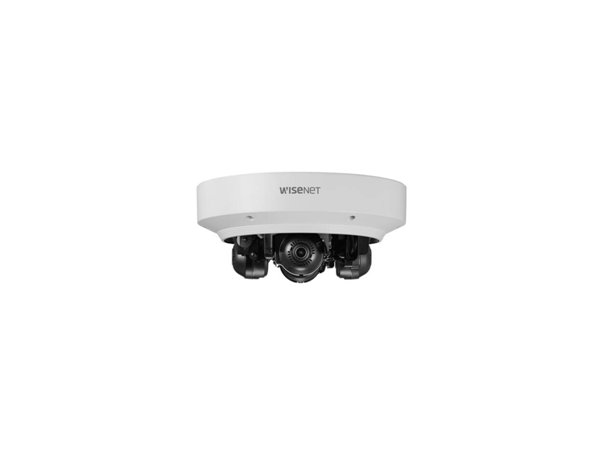

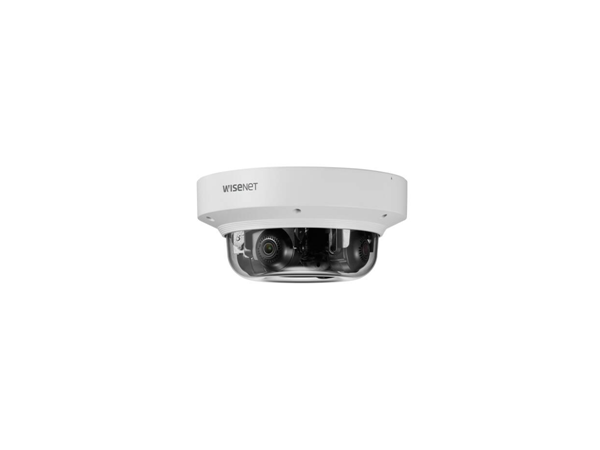

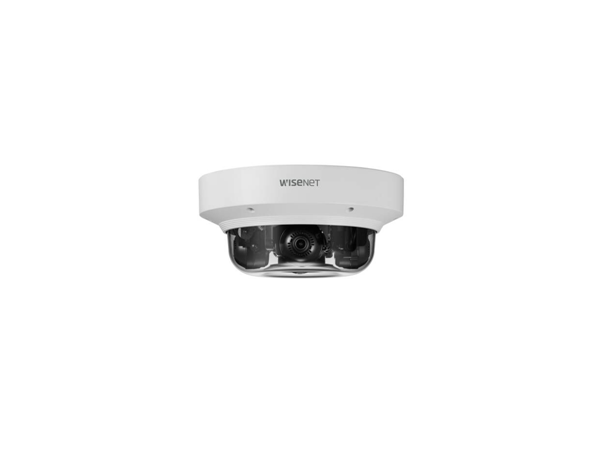

Wisenet P The PTRZ Multi-Sensor Camera (No-Gyro Sensor).

Multi-directional cameras have four sensors/lenses in one camera. When using the cameras you can monitor multiple directions simultaneously without blind spots making it ideal for wide areas while reducing costs.

PNM-9084QZ is suitable to monitor even the smallest details in a wide area. It is ideal for indoor applications such as warehouse, shopping malls, train stations – as well as outdoor applications such as parking lots, crossroads, city areas and more – supporting IP66 and IK10.

In a vertical shaped environment, such as corridors, hallways, tunnels, or aisles, traditional horizontal shaped videos focus on not usable edges of the area causing bandwidth and storage waste. The Hallway view creates 3:4 and 9:16 ratio image which is vertically oriented and maximizes image quality in a narrow environment.

关键点:

• Perfect solution for Commercial, Hospital, School, and Retail

• Support motorized PTRZ control

• IR 30m support(PNM-9084RQZ1/9085RQZ1)

• No need to set lens position by hand

• Hallway view support with CH1/CH2/CH3/CH4

• True WDR 120dB with 2MP

• WiseStreamⅡ support

• Audio/Alarm support

• Single MAC address

• HPoE support (injector included)

• IP66/IK10 certified for outdoor

•


主要特点:

• Motorized PTRZ support

• Maximum 30fps@5MP(H.265, H.264) / 60fps@2MP(H.265, H.264)

• 4.13~9.4mm(2.3x), 3~6mm(2x) motorized varifocal lens

• IR viewable length: 30m(98.43ft)

• H.265, H.264, MJPEG codec, Multi streaming

• Video analytics, WiseStreamⅡ

• IP66, IK10, NEMA4X




规格：
