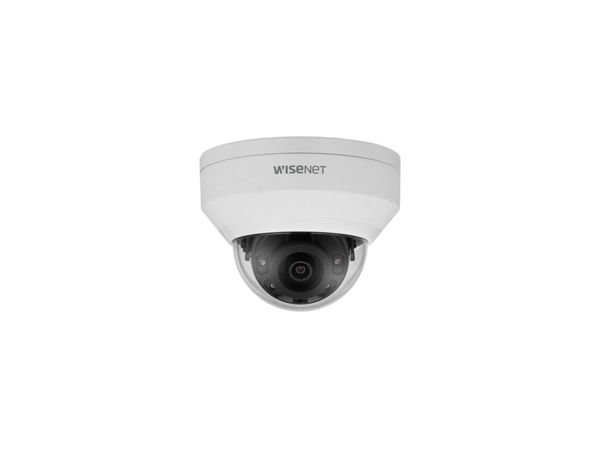

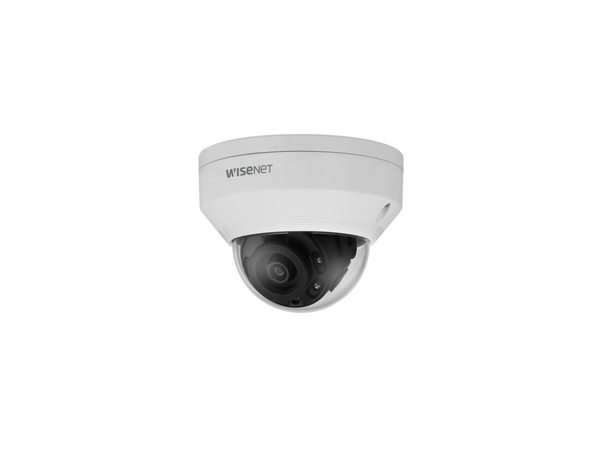

Hanwha ANV-L7012R
Outdoor Dome Camera 4MP, 3mm lens, IR, Day and Night, IK10

Request a quote

You will receive an offer for the following products
Hanwha ANV-L7012R
Outdoor Dome Camera 4MP, 3mm lens, IR, Day and Night, IK10
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details


Description Hanwha ANV-L7012R

Wisenet A-series outdoor vandalism dome camera, 4 MP at 30 FPS, 3mm fixed focal length lens, WiseStream II, triple codec (H.265/H.264/MJPEG), 120 dB WDR, IR LEDs 20 m (65, 62 ft), day and night (ICR ), FoV H: 98.3° / V: 54.2°, virtual area (intrusion/entry/exit), virtual line (intersection/direction), motion detection, tampering, corridor view, SD card, IP66, IK10, PoE, white.

Key Features:

  • 4 MP resolution, up to 30 fps (H.265/H.264)

  • Color: 0.1Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED on)

  • 3mm lens with 107.5° HFoV

  • Visible IR length: 20 m

  • Day and night (ICR), WDR (120dB)

  • H.265, H.264, MJPEG, multiple streaming supported

  • Blur detection, direction detection, motion detection, entry/exit, tamper

  • Corridor view (90⁰/270⁰), LDC support, WiseStream II

  • Micro SD/SDHC/SDXC memory slot

  • IP66, IK10


Specifications

Product

Model numberANV-L7012R
GTIN code8801089228628
BrandHanwha
Category

IP Cameras

Dome

Camera Properties

Outdoor

Built-in infrared

Vandal resistant

Basic Functionality

Day and night

Local Storage

Resolution

4MP

Hanwha Series

Wisenet A

Angle of View

91° - 100°

Encoding

H264

H265

MJPEG



Download
File name Filesize Filename extension Update date Download
Datasheet 261.48 KB pdf
User manual 4.08 MB pdf
Installation manual 3.95 MB pdf
Product dimensions 147.25 KB pdf
