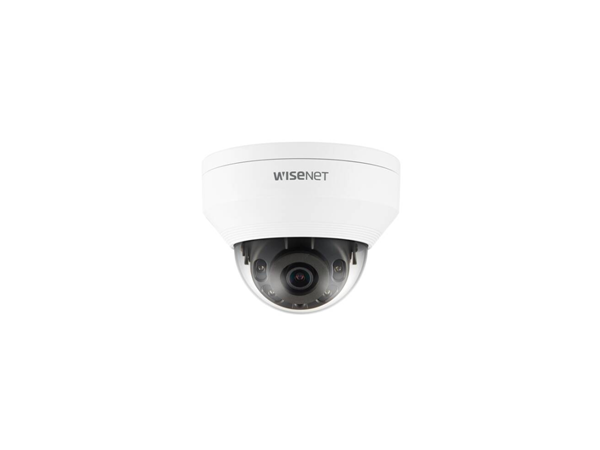

Hanwha QNV-6022R
2MP Network IR Vandal Resistant Dome camera, 30fps, Day / Night, Extreme 120dB WDR, PoE 4mm fixed lens

Request a quote

You will receive an offer for the following products
Hanwha QNV-6022R
2MP Network IR Vandal Resistant Dome camera, 30fps, Day / Night, Extreme 120dB WDR, PoE 4mm fixed lens
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details

Description Hanwha QNV-6022R

The QNV-6022R from Hanwha's Q Series affordable network camera line is a 2 Megapixel Vandal Resistant Dome network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 4mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Intelligent Video Analytics, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).

Key Features:

  • Max. Height Resolution of 2 megapixels (1920 x 1080)

  • 0.03 Lux (color), 0Lux (black and white, IR LED on)

  • 4 mm fixed lens

  • Max. Height 30fps @ 2M all resolutions (H.265 / H.264)

  • H.265, H.264, MJPEG codec supported, multiple streaming

  • Motion detection, tamper, blur detection

  • Corridor view (90˚ / 270˚), LDC support

  • Micro SD / SDHC / SDXC memory slot (max. 128 GB)

  • IR visible length 20 m / 25 m / 30 m

  • IP66, IK10, PoE, 12 VDC


Specifications

Product

Model numberQNV-6022R
GTIN code8801089165121
BrandHanwha
Category

IP Cameras

Dome

Camera Properties

Indoor

Built-in infrared

Vandal resistant

Basic Functionality

Day and night

Input/output

Audio support

Local Storage

Resolution

1080p (2MP)

Power over Ethernet

15W

Angle of View

61° - 90°

Optical zoom

1-10x

Encoding

H265



Download
File name Filesize Filename extension Update date Download
Datasheet 271.84 KB pdf
User Manual 10.19 MB pdf
Installation manual 5.06 MB pdf
Product dimensions 51.41 KB pdf
