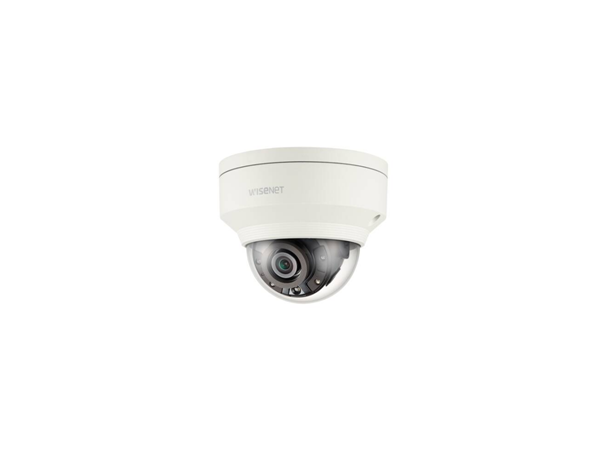

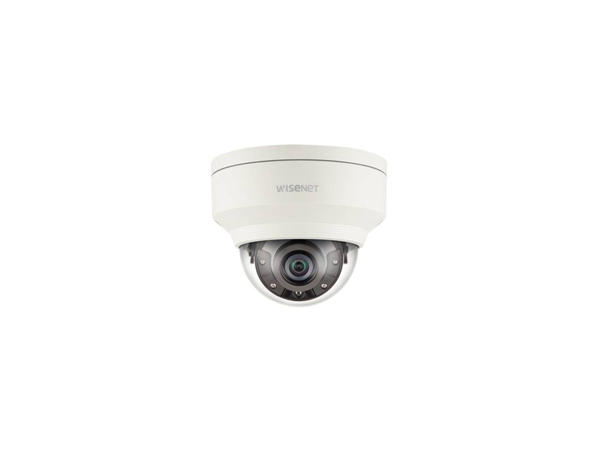

Hanwha XND-8040R
5MP IR Dome Camera, 30fps, Day / Night, 120dB WDR, Built-in 7.0mm lens

Request a quote

You will receive an offer for the following products
Hanwha XND-8040R
5MP IR Dome Camera, 30fps, Day / Night, 120dB WDR, Built-in 7.0mm lens
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details

Description Hanwha XND-8040R

WiseNet X powered by WiseNet 5 network IR indoor dome camera, 5MP @30fps WDR off/on, 7mm fixed focal lens (50.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IK08 rated

Key Features:

  • Max. 5Megapixel (2560 x 1920) resolution

  • Built-in 7.0mm fixed lens

  • Max. 30fps@all resolutions (H.265 / H.264)

  • H.265, H.264, MJPEG codec Supported, Multiple streaming

  • Day & Night (ICR), WDR (120dB), Defog

  • Loitering, Directional detection, Fog Detection, Audio detection,

  • Digital Auto Tracking, Sound classification, Heatmap,

  • People Counting, Queue Management, Tampering

  • Motion detection, Handover

  • SD / SDHC / SDXC memory slot (Max. 512GB), PoE / 12V DC

  • Hallway View, WiseStreamII Support

  • IR Viewable length 30m, IK08

  • LDC Support (Lens Distortion Correction)


Specifications

Product

Model numberXND-8040R
GTIN code8801089096456
BrandHanwha
Category

IP Cameras

Dome

Camera Properties

Indoor

Built-in infrared

Basic Functionality

Day and night

Local Storage

Resolution

5MP - 7MP

Software

Analytics

Hanwha Series

Wisenet X

Angle of View

31° - 60°



Download
File name Filesize Filename extension Update date Download
datasheet 262.71 KB pdf
User manual 11.16 MB pdf
Installation manual 4.17 MB pdf
