Hanwha XND-8081FZ
5MP Flush Mount Dome Camera, Day / Night, 120dB WDR, PTRZ, Video & Audio analytics

Request a quote

You will receive an offer for the following products
Hanwha XND-8081FZ
5MP Flush Mount Dome Camera, Day / Night, 120dB WDR, PTRZ, Video & Audio analytics
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details

Description Hanwha XND-8081FZ

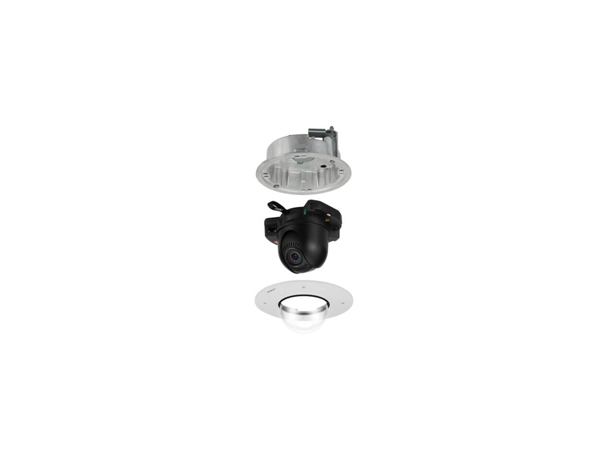

The Wisenet X series PLUS powered by Wisenet 5 network indoor flush mount dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additional features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, fog detection, DIS (Gyro), 12VDC/PoE, IP52, plenum-rated, white color. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.

Key Features:

  • Max. 5Megapixel resolution

  • 0.07Lux@F1.4 (Color), 0.007Lux@F1.4 (B/W)

  • Day & Night (ICR), WDR (150dB / 120dB)

  • Modular structure and motorized PTRZ

  • Hallway View, WiseStreamII Support

  • Video & audio analytics, Audio playback

  • DIS and shock detection with built-in gyro sensor

  • IP52/Plenum rate (UL2820), PoE, 12VDC


Specifications

Product

Model numberXND-8081FZ
GTIN code8801089152879
BrandHanwha
Category

IP Cameras

Dome

Camera Properties

Indoor

Basic Functionality

Day and night

Local Storage

Resolution

5MP - 7MP

Software

Analytics

Hanwha Series

Wisenet X

Angle of View

101° - 130°

Encoding

H264

H265

MJPEG



Download
File name Filesize Filename extension Update date Download
DataSheet 577.1 KB pdf
User manual 24.82 MB pdf
Installation manual 20.26 MB pdf
