Theia Technologies SY125 概述

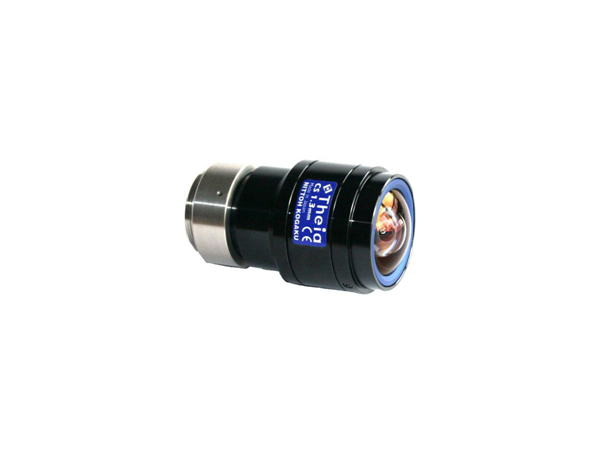

The Theia Technologies CS-Mount 1.3mm Fixed Manual Iris Lens features a fixed 1.3mm focal length that provides an ultra-wide 135° field of view with less than 3% residual barrel distortion. Using Theia's patented Linear Optical technology, this wide-angle lens corrects barrel distortion optically and does not require a custom dewarping or an image stitching algorithm which is usually associated with wide-angle lenses. This lens is designed for CS-mount cameras and supports 1/4", 1/3", and 1/2.5" image sensor sizes.

主要特点

• Can be Used with up to 5MP Cameras

• Ultra-Wide 135° Field of View

• Features Linear Optical Technology

• < 3% Residual Barrel Distortion

• Designed for CS-Mount Cameras

• Supports 1/4", 1/3", 1/2.5" Image Sensor

• Theia Technologies SY125 规格

• Imager Size	1/4", 1/3", 1/2.5" (some vignetting may occur using the 1/2.5" sensor depending on sensor tolerance)
  Mount Type	CS mount
  Focal Length	1.3mm
  Aperture	f/1.8 to closed
  Iris Operation	Manual iris
  Focus Operation	Fixed
  Angle of View	1/4": 109° / 93° / 122° (H/V/D) 1/3": 125° / 109° / 137° (H/V/D) 1/2.5": 135° / 119° / 141° (H/V/D)
  Diameter and Length	1.4 x 2.3" (36 x 59 mm)
  Weight	4.6 oz (130 g)
