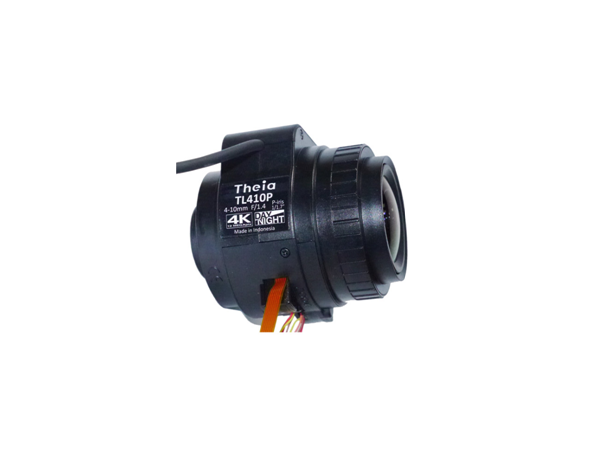

The Theia Technologies CS-Mount 4-10mm f/1.4-Close 4K IR-Corrected Motorized P-Iris Varifocal Lens is designed for use with up to 1/1.7” sensors and offers motorized zoom and focus. It features a limit switch for zoom and focus. Thanks to the compact design, it can easily fit into 4” domes. With an aperture range of f/1.4-close, the lens can be used for surveillance in low-light as well as bright light conditions. The lens is IR corrected for use with day/night cameras. This IR correction focuses IR light from artificial illumination at the same plane as the visible light, allowing the image to remain in focus when the day/night camera switches to night mode.

Theia Technologies TL410 规格

Focal Length	4-10mm
Image Circle	Up to Ø9.4 mm
Resolution	12.4 MP
Aperture	F/1.4 @ 4mm - F/2.4 @ 10mm to close
Focus Range	1.64' to infinity (0.5 m to infinity)
Back Focal Length	0.33" / 8.4 mm (in air)
Angle	CRA: < 7°
Distortion	< 61% at 4mm, < 8% at 10mm
Relative Illumination	> 45%
Transmission	Lens: > 80%
Field of View	1/1.7": 112 to 44° (horizontal), 81 to 33° (vertical), 149 to 55° (diagonal) 1/1.8": 110 to 43° (horizontal), 71 to 29° (vertical), 139 to 52° (diagonal) 1/1.8" 4K: 110 to 43° (horizontal), 52 to 21° (vertical), 126 to 48° (diagonal) 1/2": 93 to 37° (horizontal), 68 to 28° (vertical), 120 to 46° (diagonal) 1/2.3": 90 to 36° (horizontal), 67 to 27° (vertical), 117 to 45° (diagonal) 1/2.5": 83 to 33° (horizontal), 60 to 25° (vertical), 106 to 42° (diagonal)
Zoom/Focus	Drive: Stepper motor 2 phase bipolar drive Operation Voltage: 3.3 V Operating Range: 2.6 to 4.8 V Maximum Continuous Operation Time (seconds) for Operation Voltage and Ambient Temperature: @ 68°F (20°C): 60 sec (3.3 V), 12 sec (4 V), 6 sec (4.8 V) @ 104°F (40°C): 35 sec ((3.3 V), 9 sec (4 V), 5 sec (4.8 V) @ 140°F (60°C): 20 sec (3.3 V), 6 sec (4 V), 4 sec (4.8 V) Coil Resistance: 28.5 Ohms (±7%) Gear Ratio: 1:2025 Zoom Speed: 4.1 sec (@ 1000 pps) Zoom Cam Rotation: 85° Focus Speed: 8.6 sec (@ 1000 pps) Focus Cam Rotation: 75° Focus/Zoom Connectors: Housing: Molex 51021-0800 Terminal: Molex 50058-8000 Cable Length: 5.9" (150 mm)
Iris Control	Drive: Stepper motor 2 phase bipolar drive Operation Voltage: 4 V (+/-1) Number of Steps: 75 Basic Step Angle: 18° Maximum Frequency Response: 1000 pps Coil Resistance: 30 Ohms (each phase) Connector Type 1 (Molex) Connector Type: Housing: Molex 51021-0400, Terminal: Molex 50058-8000 Cable Length: 5.9" (150 mm) Connector Type 2 (CCTV) Connector Type: Housing: EYC 221 Cable Length: 11.8" (300 mm)
Limit Switches	Zoom/Focus Limit Switch Type: Photo interrupter, phototransistor Part Model: Sharp GP1S396HCPSF Operating Voltage: 3.3 V Output level: > 2.2 V HIGH, < 0.6 V LOW Connector Type: FPC cable Board-side Mating Connector Type (not supplied): Molex 52746-0671, Molex 52745-0697, Molex 52559-0652 Cable Length: 5.9" (150 mm)
IR Cut Filter	Electrical Specifications Drive: DC Operating Voltage: 4 V Drive Coil Resistance: 130 Ohms Connector Type Housing: Molex 51021-0200 Terminal: Molex 50058-8000 Cable Length: 5.9" (150 mm) Optical Specifications for IR filter (Day) Cut-on Wavelength: 405 nm ±10 nm Visible Transmission: 430 to 610 nm Cut-off Wavelength: 650 nm ±10 nm IR Transmission: < 5% maximum 700 to 1000 nm, < 10% average 1000 to 1100 nm Optical Specifications for Clear Filter (Night) Visible Transmission: 400 to 1050 nm
Operating Temperature & Humidity	4 to 140°F (-20 to 60°C) Humidity: < 70%, non-condensing
Storage Temperature & Humidity	-22 to 158°F (-30 to 70°C) Humidity: < 90%, non-condensing
Dimensions	2.32 x 2" (59 x 51.5 mm)
Weight	2.75 oz (78 g)
