Theia Technologies TL936 概述

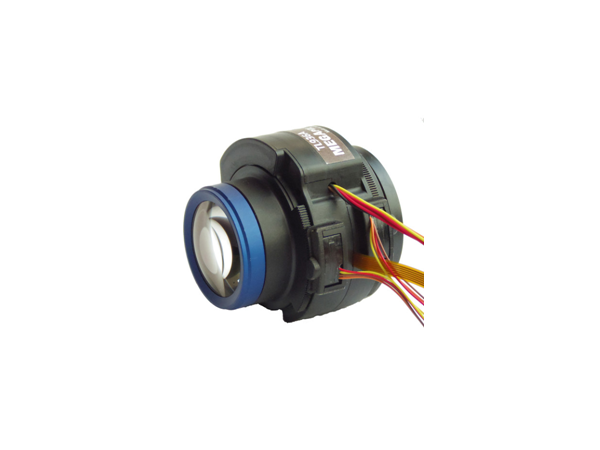

The CS-Mount 9-36mm Motorized Telephoto 4K Lens from Theia Technologies is designed for use with 1/3", 1/2.7" HD, 1/2.5", and 1/2.3" 4K sensors. It features 4x optical zoom and a focal length of 9-36mm for long reach and field of view optimization. In addition, this lens comes with a limit switch for zoom and focus.
Compatible with 4K cameras
5MP resolution for demanding applications
Compact design (<2" TTL) to fit domes as small as 4"
Motorized zoom, focus, and iris
Switch for zoom and focus limits
Theia Technologies TL936 规格
| Focal Length | 9-36mm |
| Resolution | 5 MP |
| Aperture | f/1.5-close |
| Lens Length | <2" / <50 mm |
| Focus Range | 8.2' to infinity / 2.5 m to infinity |
| Range | CS Mount Slip Range: 320° |
| Field of View | Sensor Size: 1/3"
30 to 7.1° (horizontal), 22 to 5.3° (vertical), 38 to 8.8° (diagonal)
Sensor Size: 1/2.7" HD
37 to 8.6° (horizontal), 20 to 4.8° (vertical), 42 to 9.9° (diagonal)
Sensor Size: 1/2.5"
36 to 8.5° (horizontal), 27 to 6.3° (vertical), 46 to 10.6° (diagonal)
Sensor Size: 1/2.3" 4K (4000 x 2000)
39 to 10° (horizontal), 19 to 5° (vertical), 44 to 11° (diagonal) |
| Zoom/Focus | Drive: Stepper motor
2-phase bipolar drive
Operation Voltage: 3.3 V
Operating Range: 2.6 to 4.8 V
Continuous Operation: <10 sec at 3 V (at 140°F / 60°C) ambient)
<3 sec at 5 V (at 140°F / 60°C) ambient)
Coil Resistance: 28.5 Ohms ±7%
Gear Ratio: 1:2308
Zoom Speed: 3 sec at 1000 pps
Zoom Cam Rotation: 57°
Focus Speed: 8.5 sec at 600 pps
Focus Cam Rotation: 100°
Focus/Zoom Connectors: Housing: Molex 51021-0800, Terminal: Molex 50058-8000
Cable Length: 5.9" / 150 mm |
| Auto Iris Control | Drive: DC
Operation Voltage: 3 V (2.5 to 5 V)
Power Consumption: 26 mA (maximum)
Drive Coil Resistance: 190 Ohms ±10%
Damper Coil Resistance: 588 Ohms ±7%
Connectors
Connector Type 1: Molex
Connector Type: Housing: Molex 51021-0400, Terminal: Molex 50058-8000
Cable Length: 6" / 150 mm |
| Limit Switches | Type: Photo interrupter phototransistor
Part Model: Sharp GP1S396HCPSF
Operating Voltage: 3.3 V
Output Level: >2.2 V (high), 0.6 V (low)
Connector Type: FPC cable
Board-Side Mating Connector Type (Sold Separately): Molex 52746-0671, Molex 52745-0697, Molex 52559-0652
Cable Length: 3.5" / 90 mm |
| Operating Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | <70% (non-condensing) |
| Dimensions | 2.12 x 1.9" / 54 x 49.4 mm |
| Weight | 2.43 oz / 69 g |
