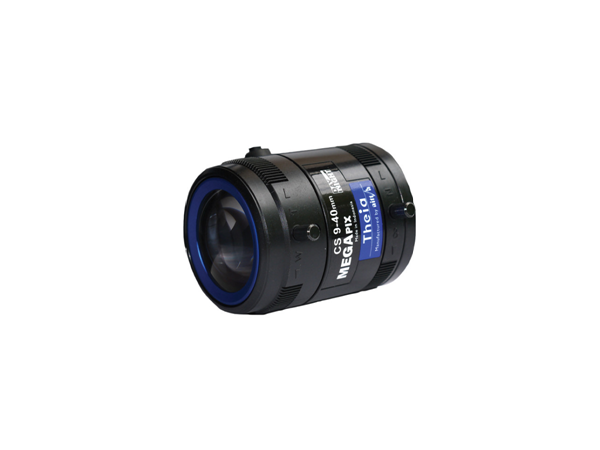

THEIA SL940A
Theia Technologies CS-Mount 9 to 40mm Telephoto Day/Night DC Auto Iris Lens

Request a quote

You will receive an offer for the following products
THEIA SL940A
Theia Technologies CS-Mount 9 to 40mm Telephoto Day/Night DC Auto Iris Lens
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details

Theia Technologies SL940 Overview



The Theia Technologies CS-Mount 9 to 40mm Telephoto Day/Night DC Auto Iris Lens magnifies objects from far away for unobtrusive security.

The lens is designed to allow the installer to take full advantage of the high resolution of HD and multi megapixel cameras and can be used on cameras at up to 5 MP resolution, giving a crisp image from edge to edge.

The lens is IR corrected for use with true Day/Night cameras. With IR correction, light from artificial illumination focuses at the same plane as the visible light, allowing the image to remain in focus when the camera switches to night mode and. Unlike lenses without IR correction, the night image will not be out of focus when using IR illumination.

9 to 40mm for long reach and field-of-view optimization

IR corrected for true Day/Night cameras

Supports multi MP resolution cameras for demanding applications up to 5 MP

Compact design to fit into domes as small as 4" (10.16 cm) minidome size

Designed with DC auto iris, CS-mount, and 1/3", 1/2.7" HD, and 1/2.5" sensors




Key Features

  • Can Be Used with Up To 5MP Cameras

  • Long Reach and Field of View

  • IR Corrected

  • Compact Design to Fit Mini Dome Cameras

  • F/1.5 to Closed Aperture

  • Theia Technologies SL940 Specs

  • Lens Type

    DC auto iris

    Focal Length

    9 to 40 mm

    Distortion

    <1%

    Resolution

    Up to 5 MP resolution

    F Number

    F/1.5 to close

    IR Corrected

    Day/Night

    Mount

    CS

    Field of View

    At 1/3" Sensor Size: 30 to 7.1° (H), 22 to 5.3° (V), 38 to 8.8° (D)
    At 1/2.7" HD Sensor Size: 37 to 8.6° (H), 20 to 4.8° (V), 42 to 9.9° (D)
    At 1/2.5" Sensor Size: 36 to 8.5° (H), 27 to 6.3° (V), 46 to 10.6° (D)

    Lens Length

    <1.96" (50 mm)
