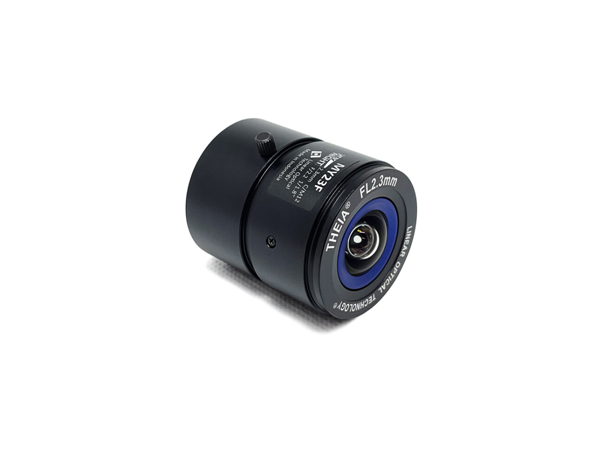

Theia Technologies MY23F Overview
The MY23F C-Mount 2.3mm Fixed Lens from Theia is designed for use with up to 5MP resolution cameras that have a 1/1.8, 1/2.3, or 1/2.5" sensor. This fixed lens features a 2.3mm focal length that delivers a horizontal field of view up to 116°. It is IR corrected and is constructed out of metal for durability.
Linear Optical Technology to correct barrel distortion
Supports multi-spectral imaging and day/night cameras
f/2.2 aperture
3.9" to infinity focus range
<1% distortion
Supports multi-megapixel resolution cameras
Key Features
Compatible with Cameras up to 5MP
C Mount
2.3mm Focal Length
Works with 1/1.8, 1/2.3 & 1/2.5" Sensors
Horizontal Field of View up to 116°
IR Corrected
Metal Construction
Theia Technologies MY23F Specs
| Lens Mount | C |
| Sensor Compatibility | 1/1.8", 1/2.3", 1/2.5" |
| Focal Length | 2.3mm |
| Back Focal Length | 7.3mm |
| Maximum Aperture | f/2.2 |
| Angle of View | 1/1.8"-Type Sensor
Horizontal: 116°
Vertical: 95°
Diagonal: 126°
1/2.3"-Type Sensor
Horizontal: 110°
Horizontal: 84°
Diagonal: 119°
1/2.5"-Type Sensor
Horizontal: 102°
Vertical: 86°
Diagonal: 114° |
| Working Distance | From Front of Lens: 3.9" / 0.1 m |
| Focus Type | Fixed Focus |
| Iris Type | Fixed |
| Distortion | 1% |
| Effective Diameter | Front: 0.4" / 9.2 mm |
| IR Corrected | Yes |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Storage Temperature | -4 to 176°F / -20 to 80°C |

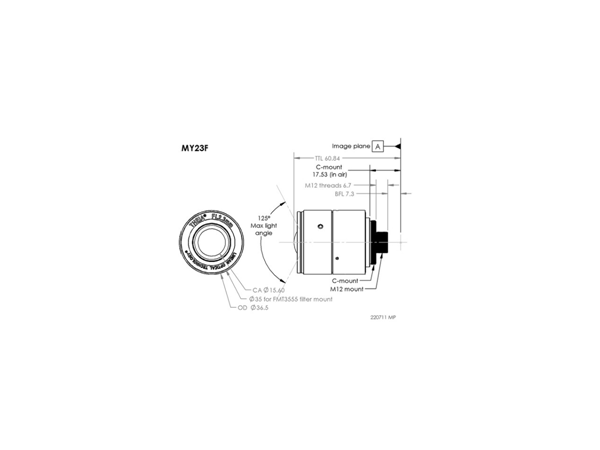

| Dimensions (ø x L) | 1.4 x 2.4" / 36.5 x 60.84 mm |
| Weight | 2.9 oz / 81 g |
