THEIA SL410P

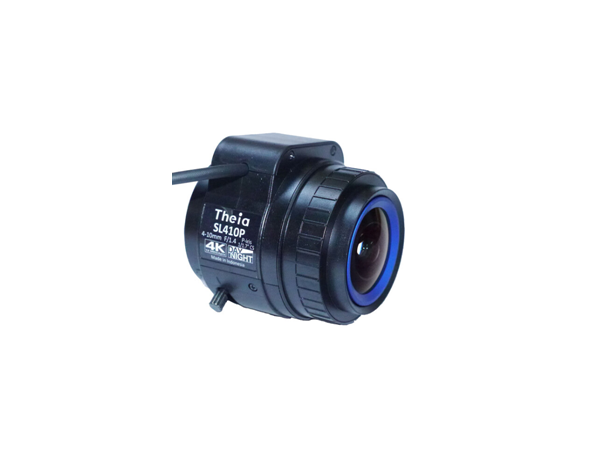

Theia Technologies SL410 4-10 mm CS-Mount F/1.4 4K DC P-Iris Varifocal Lens

Request a quote

You will receive an offer for the following products
THEIA SL410P
Theia Technologies SL410 4-10 mm CS-Mount F/1.4 4K DC P-Iris Varifocal Lens
Contact person:*
Company:*
Tel:Email:*
Message:*
Captcha:
Product details

Theia Technologies SL410 Overview


The SL410 4-10mm CS-Mount F/1.4 4K DC P-Iris Varifocal Lens from Theia Technologies is designed for true 4K resolution.  With varifocal length from 4-10mm and superior imaging performance, the SL410 can be used with image sensors from 1/2.3" up to 1/1.7". The lens is designed to be very compact so it can be used in small enclosures such as 4" domes and on 4K box cameras for security and machine vision applications.

The SL410 lens allows the installer to take full advantage of the high resolution of 4K, HD, and multi megapixel cameras.  The lens can be used on cameras up to 12 MP resolution giving a crisp image from edge to edge.



Theia Technologies SL410 Specs

Iris Type

P-Iris

Focal Length

4-10mm varifocal

F/Number

F/1.4 to closed

Resolution

True 4K resolution, 12 MP

IR Corrected

Yes

Angle of Light Beam

106° maximum

Mount Type

CS mount

Image Sensor Size

1/2.3" up to 1/1.7"

Dimensions

2.32 x 2" (59 x 51.5 mm)
